Preface

Harmony:|| is constructed from female digitigrade wolfy anatomy. But…I have to make digitigrade male structure. Additionally, I want to take it easy! I don’t like iterations!

Then, I’ll tackle to this problem, from basic algebra.

Before Calculation…

To begin with, structural state of Harmony:|| is female digitigrade state $S_{\text{(d,f)}}$. I made “MUKIMUKI Comfy(Muscular Blobcat with a blanket)”.

WTF

It has male plantigrade structural state $S_{\text{(p,m)}}$. And, I made plantigrade female transform file including plantigrade female state $S_{\text{(p,f)}}$ while making it. I would like to reuse those.

Concept of Calculate $S_{\text{(d,m)}}$

I already have state matrices $S_{\text{(d,f)}}$, $S_{\text{(p,f)}}$ and $S_{\text{(p,m)}}$. Those matrices are conceptually expressed by

$$\begin{align*} S_{\text{(d,f)}} T_{\text{(d,f)to(p,f)}} &= S_{\text{(p,f)}}\\ S_{\text{(p,f)}} T_{\text{(p,f)to(p,m)}} &= S_{\text{(p,m)}} \end{align*}$$

where $T$ is transform matrix.

$S_{\text{(d,f)}}$ is identity matrix $I$, and I can calculate transform matrix directly;

$$\begin{align*} I T_{\text{(d,f)to(p,f)}} = S_{\text{(p,f)}} &\Leftrightarrow T_{\text{(d,f)to(p,f)}} = S_{\text{(p,f)}}\\ S_{\text{(p,f)}} T_{\text{(p,f)to(p,m)}} = S_{\text{(p,m)}} &\Leftrightarrow T_{\text{(p,f)to(p,m)}} = {S_{\text{(p,f)}}}^{-1} S_{\text{(p,m)}} \end{align*}$$

I assume that non-changed attributes can be ignored. That is,

$$\begin{align*} T_{\text{(d,f)to(p,f)}} &= T_{\text{(d,}\bullet \text{ )to(p,}\bullet \text{)}}\\ T_{\text{(d,f)to(p,m)}} &=T_{\text{(}\bullet \text{,f )to(}\bullet \text{,m)}}\\ \end{align*}$$

Then, I can calculate 2 ways transform to $S_{\text{(d,m)}}$, maybe.

$$\begin{align*} S_{\text{(p,m)}} {T_{\text{(d,}\bullet \text{ )to(p,}\bullet \text{)}}}^{-1} \stackrel{\text{method 1}}{=} S_{\text{(d,m)}}\\ S_{\text{(d,f)}} T_{\text{(}\bullet \text{,f )to(}\bullet \text{,m)}} \stackrel{\text{method 2}}{=} S_{\text{(d,m)}} \end{align*}$$

Happy Experiment Time!!

Harmony:|| has some scripts on UI panel. Then, I have to modify a bit only!

import bpy, json
from mathutils import Matrix

fp_S_df = None #because S_df is identity matix
fp_S_pf = 'plantigrade.harmony'
fp_S_pm = 'plantigrade_male.harmony'

armature = bpy.data.objects['Harmony_armature']

with open(fp_S_pf, 'rt') as f:
	data_S_pf = json.load(f)
with open(fp_S_pm, 'rt') as f:
	data_S_pm = json.load(f)

for k,v in data_S_pf.items():
	T_dx2px = Matrix(data_S_pf[k])
	T_xf2xm = Matrix(data_S_pf[k]).inverted_safe() @ Matrix(data_S_pm[k])
	S_pm = Matrix(data_S_pm[k])

	armature.pose.bones[k].matrix_basis = S_pm @ T_dx2px.inverted_safe() #method 1
	# armature.pose.bones[k].matrix_basis = T_xf2xm #method 2

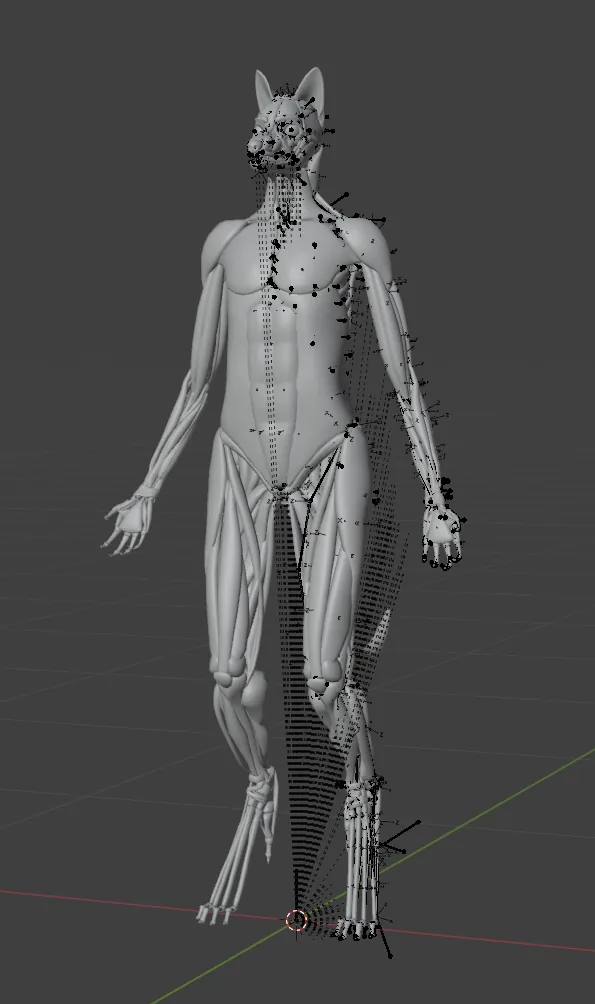

Initial State

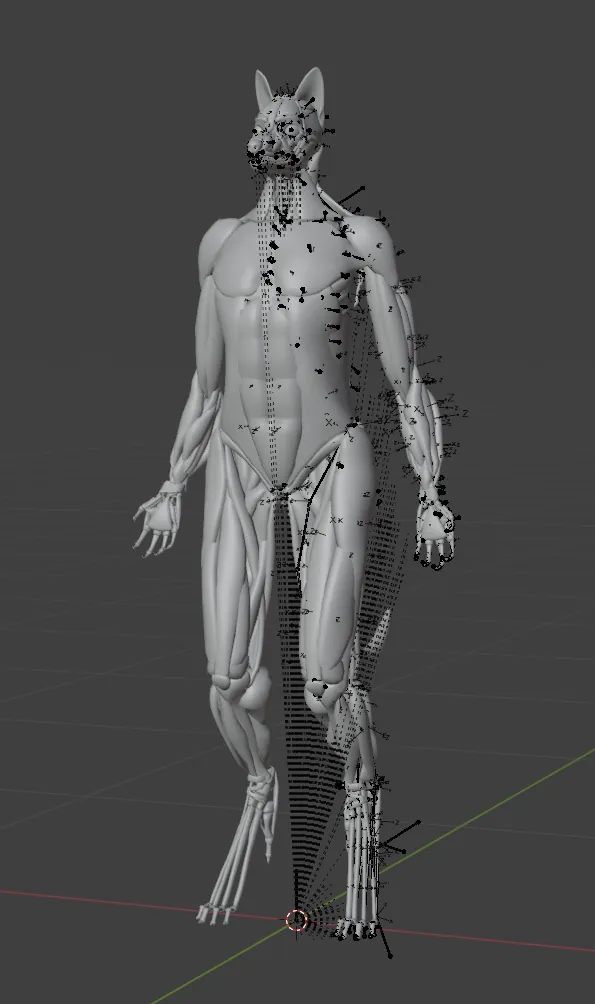

Target State(method 1)

Target State(method 2)

Nice.
